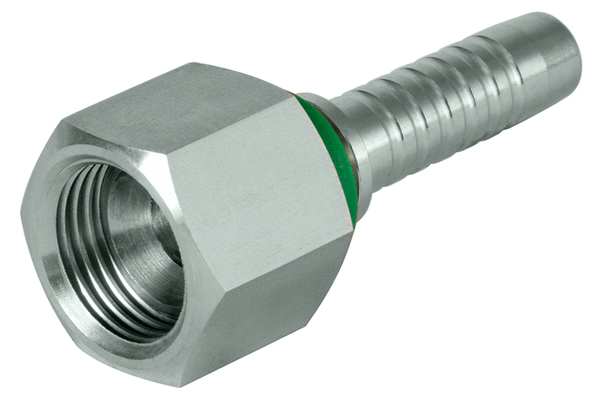

XV17JF10
DKJ JF

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	1.1/16"-12 UN

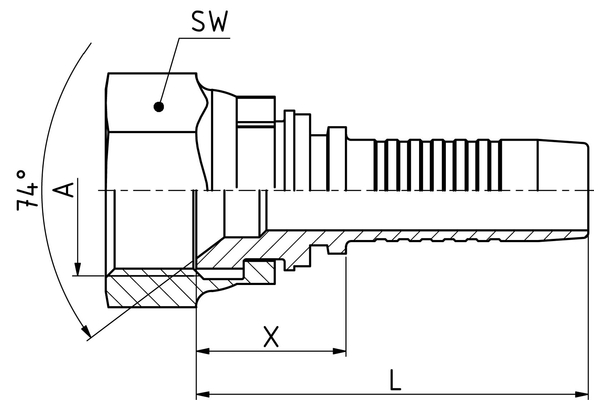

  X [mm]:	23,0
  L1 [mm]:	61,5
  SW1 [mm]:	32
  Type of nut:	CR
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	720
  Resistance against white rust [h]:	120
  Surface:	Zinc-Nickel
  Type of fittings:	Universal series XV
