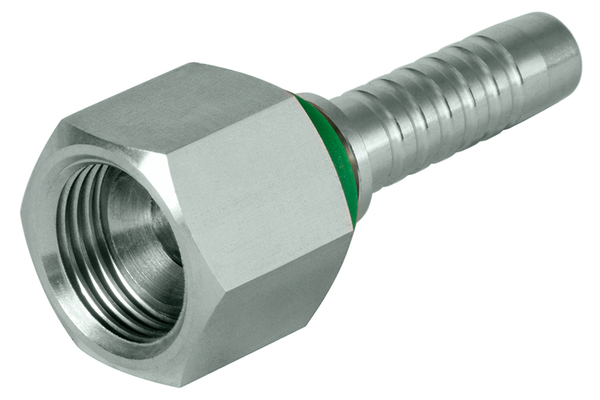

XV17JF12
DKJ JF

Product info

• Technical data

  DN:	19
  Size:	12
  Inch:	3/4

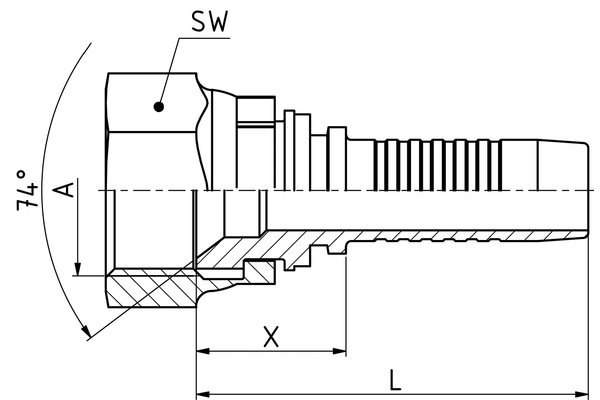

  Thread + standard:	JIC threaded adapter, 74 ° cone with union nut, UN / UNF thread
  Connection thread A:	1.1/16"-12 UN
  X [mm]:	22,6
  L1 [mm]:	66,9
  SW1 [mm]:	32
  Type of nut:	CR
  Connection name Indunorm:	JF
  Connection type:	DKJ
  Construction form:	0°
  Material:	Free cutting steel
  Resistance against red rust [h]:	144
  Resistance against white rust [h]:	72
  Surface:	galvanised and Cr III passivated
  Type of fittings:	Universal series XV
