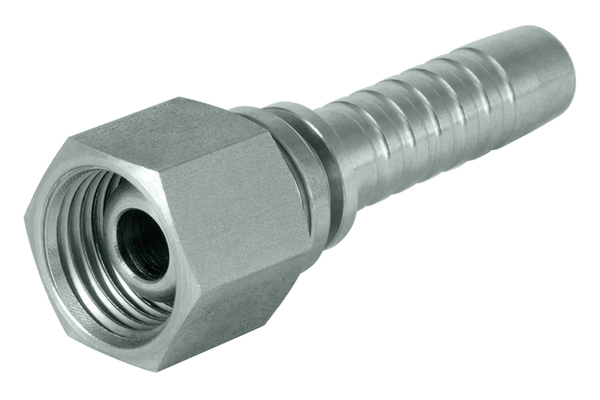

XV22MSF15-08
DKL MSF

Product info

• Technical data

  DN:	12
  Size:	08
  Inch:	1/2
  Thread + standard:	Sealing cone with union nut light series
  Connection thread A:	M22x1,5
  Pipe Ø R [mm]:	15

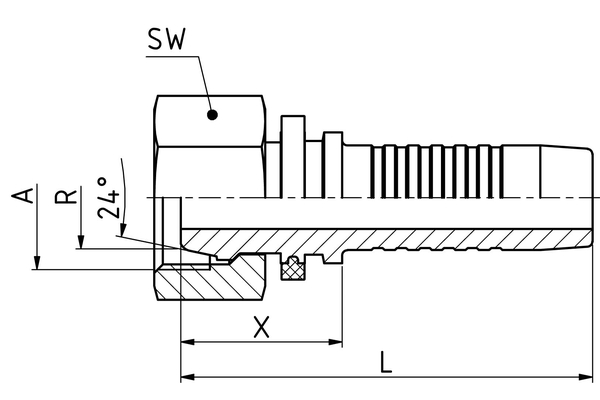

  X [mm]:	26,5
  L1 [mm]:	62,0
  SW1 [mm]:	27
  Connection name Indunorm:	MSF
  Connection type:	DKL
  Construction form:	0°
  Material:	Free cutting steel
  Surface:	Cr3
  Type of fittings:	Universal series XV
