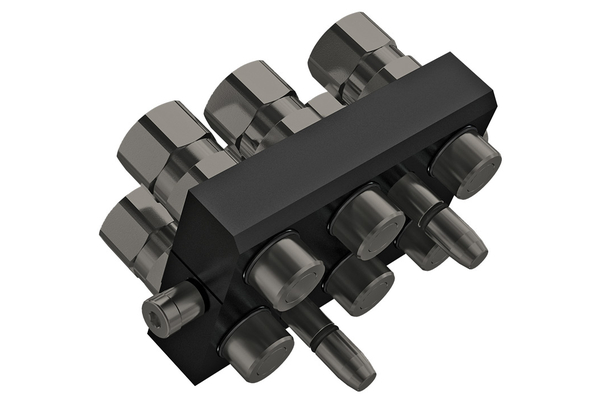

MST6 (P608G) male coupling DN12 - zinc-nickel

Detail

DN
12
12
Size
08
08
working pressure [bar]
250
250
Thread + standard
BSP female DIN 3852
ISO 1179-1
Thread [GA]
1/2"
G1/2"-14
Pipe Ø R [mm]
-
Number of hydraulic inserts
6
4
Number of electrical inserts
2
Series
3P
3P
Manufacturer ID number
3P608G-6-12GMC
3P608G-4-E M C
max. number of electronic plugs
2
max. number of hydraulic plugs
6
l/min at ΔP=2 bar
DN 12: 70 l/min
70
Quantity


Product info

  • Technical data
    Applications: industry, agricultural technology , power units, construction machines
    Female or male coupling: Plug
    Material: Aluminum & Steel
    Material sealing: NBR & PUR
    Surface: MATE 1000 (ZnNi) & Paint
    Temperature range [°C]: -25°C /+100°C

Benefit

Please refer to our wide spare part list to replace defect components.

Accessories

male coupling holder: MST-6-6-12SH Sealing plug: MST-KIT-TSP12S
